For Minka-Aire ceiling fansDirect Replacement

F510L-CL Ceiling Fan Wall Control for Minka-Aire

Fan Model # F510L-CL
Ceiling Fan Wall Control
Fits 1 model

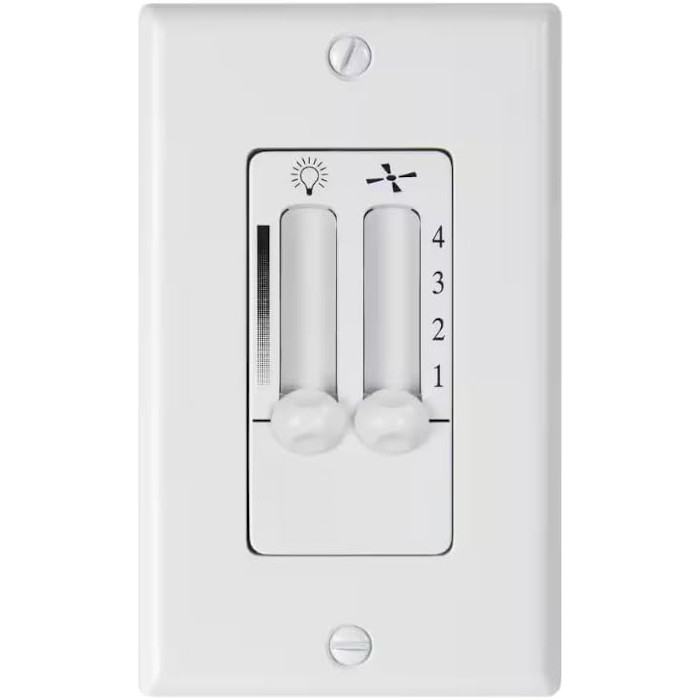

For the Minka-Aire F510L-CL Spacesaver ceiling fan: a new wall control with four speeds and a dimmer on two sliders.

$29.95

Ships today from FanRemotes.com

if ordered in the next

In stock

1-Year WarrantyOn every product
Same-Day ShippingIn-stock orders by 4 PM
90-Day ReturnsSee return policy
Expert Support(816) 586-8457Mon–Fri, 8 AM – 5 PM CT

Category: Ceiling Fan Wall Control Brand: Comfort Direct, Minka-Aire

Compatible Models

This replacement wall control for the Minka-Aire F510L-CL fits 1 model. Check the model number on your fan’s label.

F510L-CL Spacesaver 26-in LED Coal

Not sure it’s the right one? Call (816) 586-8457 or email info@fanremotes.com and we’ll check it against your fan for you.

Need help finding your model number?

About the Minka-Aire F510L-CL Wall Control

The Minka-Aire F510L-CL is the 26-inch Spacesaver ceiling fan in coal with an LED light. Swap in this control and you're back to four speeds and a dimmer on two sliders.

It is made for the Minka-Aire F510L-CL. Check the model sticker on the fan: if it reads F510L-CL, this is the wall control you need. Set the pull chains first, then wire it into a standard single-gang box.

Full-range dimming up to 300 W
Single-gang, 3-wire hookup
Rated 1.25 A fan load at 120 V

Safety before you start

Shut off the circuit at the breaker panel, not just the wall switch, and put a piece of tape over the breaker so nobody flips it back. Check the wires with a non-contact voltage tester before you touch them. If the box has more than one circuit, test every wire. Work with dry hands and a flashlight.

Four speeds plus off

The fan slider has four speeds and off, one more step than many pull chains offer. Slide it to the bottom to turn the fan off, and do the same with the light slider to switch the light off. Everything else is in between.

Before you order

Based on its product line, we expect the F510L-CL to use this wall control. Compare your old wall control with our photos, or send us a picture before you order.
Do not use it on an outlet, a motor appliance or a transformer-fed light.

Setup & Pairing

Work with the breaker off from start to finish.

Turn the circuit off at the breaker panel before anything else.
Set the fan chain on High and the light chain on; they stay there.
Make sure there's one wire for the fan and another for the light between the box and the ceiling.
Wire-nut the line, fan and light leads to the matching house wires, then attach any ground wire to the ground screw.
Screw the control into the box, reuse the old wall plate, and switch the breaker on.

If anything about the wiring looks unfamiliar, stop and call a licensed electrician.

In the box: Dual-slide fan and light wall control for the Minka-Aire F510L-CL, plus mounting screws, wire nuts and instructions.

Product Details

Fan Model	F510L-CL
Fan Brand	Minka-Aire
Product Type	Ceiling Fan Wall Control
Made By	Comfort Direct
Condition	New
Fan speeds	4 + off
Light	Full-range slide dimmer
Fan load	1.25 A maximum
Light load	300 W maximum, rated for incandescent fan lights
Power	120 V, 60 Hz
Wiring	3-wire: hot, fan and light, with separate fan and light wires to the ceiling
Wall box	Standard single-gang wall-switch box
Warranty	1 year
Compatible Models	1 (see list)
Availability	In stock
Ships	Same business day if ordered by 4 PM
Returns	90 days on unused items

Not sure this is the right wall control?Our team will check it against your fan before you order.(816) 586-8457 · info@fanremotes.comMon–Fri, 8 AM – 5 PM CT

Why Buy From FanRemotes.com?

1-Year WarrantyEvery product is covered against defects
Same-Day ShippingIn-stock orders placed by 4 PM ship the same business day
90-Day Return PolicyBuy with confidence
Real Remote Experts(816) 586-8457 · Mon–Fri, 8 AM – 5 PM CT

Frequently Asked Questions

Will this replacement wall control for the Minka-Aire F510L-CL fit my ceiling fan?

It fits the 1 model listed under Compatible Models on this page. If your model isn’t listed, call us at (816) 586-8457 and we’ll check for you.

Does it work with LED bulbs?

The dimmer is rated for incandescent fan light kits up to 300 W. We can't promise smooth dimming with every LED bulb, and it is not for CFL bulbs.

What should my pull chains be set to?

Set the fan chain to High and turn the light chain on, then leave them. The wall control does the rest.

How much fan can it handle?

Up to 1.25 A at 120 V. Check the label on your fan motor.

Is this the original Minka-Aire part?

No. It's a new Comfort Direct replacement built to work like the original wall control, and it carries our 1-year warranty.

What tools will I need?

A screwdriver, a wire stripper, a non-contact voltage tester and a few wire nuts cover it. A flashlight helps in a dark wall box.

When will my order ship?

In-stock orders placed by 4 PM, Monday to Friday, ship the same business day.

What is your return policy?

You can return items within 90 days. Items must be unused and uninstalled, in their original packaging. No restocking fees. Please read our return policy before sending anything back. Questions? Call (816) 586-8457 or email info@fanremotes.com.

Is there a warranty?

Yes. Every product we sell comes with a 1-year warranty against defects. If it fails because of a defect, contact us and we’ll send a replacement.
