For Hampton Bay ceiling fansDirect Replacement

CHQ8BT7096T Ceiling Fan Remote Control for Hampton Bay

Part # CHQ8BT7096T
Ceiling Fan Remote

A new Comfort Direct remote for Hampton Bay fans that shipped with the CHQ8BT7096T, offering thermostat control, three speeds and a Fan Timer key.

$32.95

Ships today from FanRemotes.com

if ordered in the next

In stock

1-Year WarrantyOn every product
Same-Day ShippingIn-stock orders by 4 PM
90-Day ReturnsSee return policy
Expert Support(816) 586-8457Mon–Fri, 8 AM – 5 PM CT

Category: Ceiling Fan Remotes Brand: Comfort Direct, Hampton Bay

Will This Remote Fit?

This remote is made to replace the CHQ8BT7096T. Check the label on your old remote (often inside the battery cover) — if it reads CHQ8BT7096T, this is the one you need.

Need help finding your model number? Not sure? Call (816) 586-8457 or email info@fanremotes.com.

About the Hampton Bay CHQ8BT7096T Remote

A dropped, chewed or simply worn-out CHQ8BT7096T doesn't mean a new fan. This remote restores an LCD display, Fan Auto and a timer key. You'll usually find CHQ8BT7096T printed after the letters FCC on a sticker on the back, or molded into the plastic beside the battery. Note that some Windward III remotes with this label have a red or orange light button and pair with an up/down-light receiver; those need a different remote and receiver kit, so check the light button color first.

It's made to stand in for the CHQ8BT7096T on Hampton Bay fans. Setup is four DIP switches and four AAA batteries.

Four 1.5V AAA batteries, sold separately
Fan Timer key for automatic off
One fan key steps through high, medium, low and off

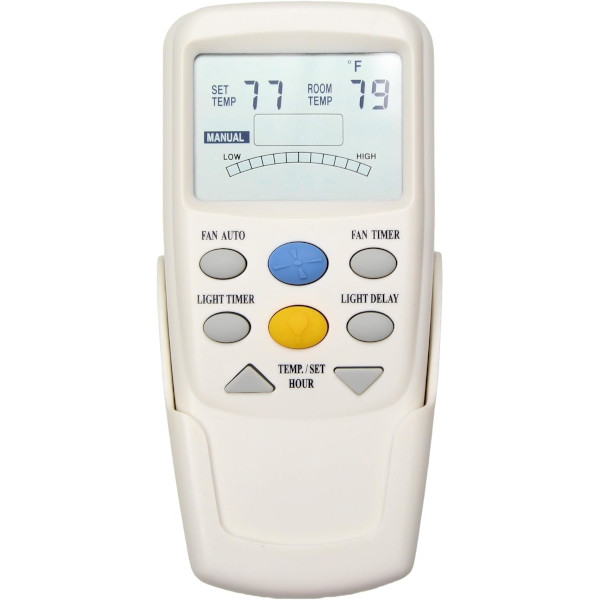

Reading the display

The LCD on the front shows three things: the temperature you set, the current room temperature and the battery level. If the display reads in Celsius and you want Fahrenheit, press the small F/C button in the pin-hole on the back with a pen tip.

Four AAA batteries

The LCD and thermostat need a bit more power than a basic remote, so this one takes four 1.5V AAA batteries. Use a fresh matched set, and watch the battery level on the display so you can swap them before the remote fades.

Before you order

Campbell fans may need a matching receiver as well as the remote. Contact us before ordering for a Campbell fan.

Setup & Pairing

If your old remote is still around, setup takes a couple of minutes.

Shut off the fan's circuit at the breaker.
Slide off the battery cover on the new remote. The 4 DIP switches are inside the battery compartment.
Write down the up/down positions from the old remote or the canopy receiver.
Copy that pattern onto the new remote, load four AAA batteries and close it up.
Turn the power back on and test the fan speeds and light.

Once it works, mount the wall bracket and keep the remote on it between uses.

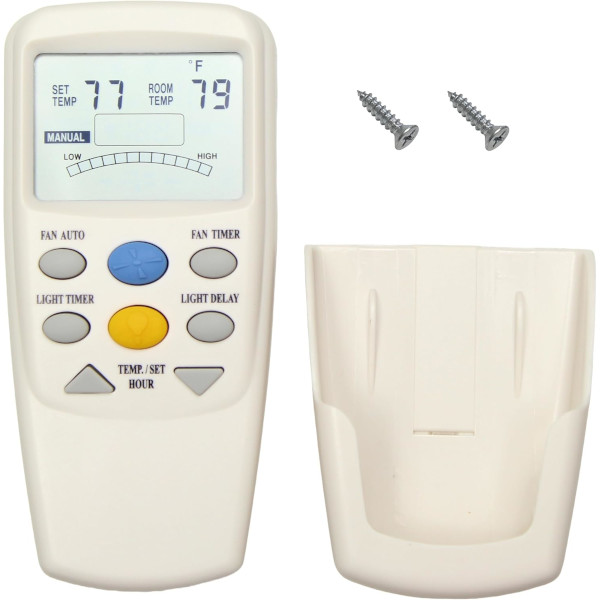

In the box: CHQ8BT7096T replacement remote with Fan Timer key, wall mount bracket and 2 mounting screws.

Product Details

Part Number	CHQ8BT7096T
Fan Brand	Hampton Bay
Product Type	Ceiling Fan Remote
Made By	Comfort Direct
Condition	New
Frequency	303 MHz band (302.739 MHz)
Pairing	4 DIP switches in the battery compartment, 16 codes
Battery	Four 1.5V AAA (not included)
Fan speeds	High, medium, low and off
Light	On/off and dimming, down-light only
Timer	Fan Timer key for automatic off (no reverse key)
Thermostat	Fan Auto mode with LCD room temperature display
Warranty	1 year
Availability	In stock
Ships	Same business day if ordered by 4 PM
Returns	90 days on unused items

Not sure this is the right remote?Our team will check it against your fan before you order.(816) 586-8457 · info@fanremotes.comMon–Fri, 8 AM – 5 PM CT

Why Buy From FanRemotes.com?

1-Year WarrantyEvery product is covered against defects
Same-Day ShippingIn-stock orders placed by 4 PM ship the same business day
90-Day Return PolicyBuy with confidence
Real Remote Experts(816) 586-8457 · Mon–Fri, 8 AM – 5 PM CT

Frequently Asked Questions

Where are the DIP switches?

Inside the battery compartment. Slide off the cover and you'll see four small switches to match to your receiver.

What battery does it take?

Four 1.5V AAA batteries, not included.

What does the Fan Timer key do?

It sets the fan to turn itself off later, so you can fall asleep with it running.

Does it come with a wall holder?

Yes. A wall mount comes in the box so the remote always has a place to go.

What do the switch positions mean?

Each DIP switch is either up or down (on or off). The pattern is all that matters: it must match the receiver switch for switch.

When will my order ship?

In-stock orders placed by 4 PM, Monday to Friday, ship the same business day.

What is your return policy?

You can return items within 90 days. Items must be unused and uninstalled, in their original packaging. No restocking fees. Please read our return policy before sending anything back. Questions? Call (816) 586-8457 or email info@fanremotes.com.

Is there a warranty?

Yes. Every product we sell comes with a 1-year warranty against defects. If it fails because of a defect, contact us and we’ll send a replacement.
