For Hampton Bay ceiling fansDirect Replacement

CHQ8BT7051R Ceiling Fan Receiver for Hampton Bay

Part # CHQ8BT7051R
Ceiling Fan Receiver

Our CHQ8BT7051R replacement receiver gives your Hampton Bay fan full control of speeds, reverse and the down light.

$46.95

Ships today from FanRemotes.com

if ordered in the next

1-Year WarrantyOn every product
Same-Day ShippingIn-stock orders by 4 PM
90-Day ReturnsSee return policy
Expert Support(816) 586-8457Mon–Fri, 8 AM – 5 PM CT

Category: Ceiling Fan Receiver Brand: Comfort Direct, Hampton Bay

Will This Receiver Fit?

This receiver is made to replace the CHQ8BT7051R. Check the label on your old receiver — if it reads CHQ8BT7051R, this is the one you need.

Need help finding your model number? Not sure? Call (816) 586-8457 or email info@fanremotes.com.

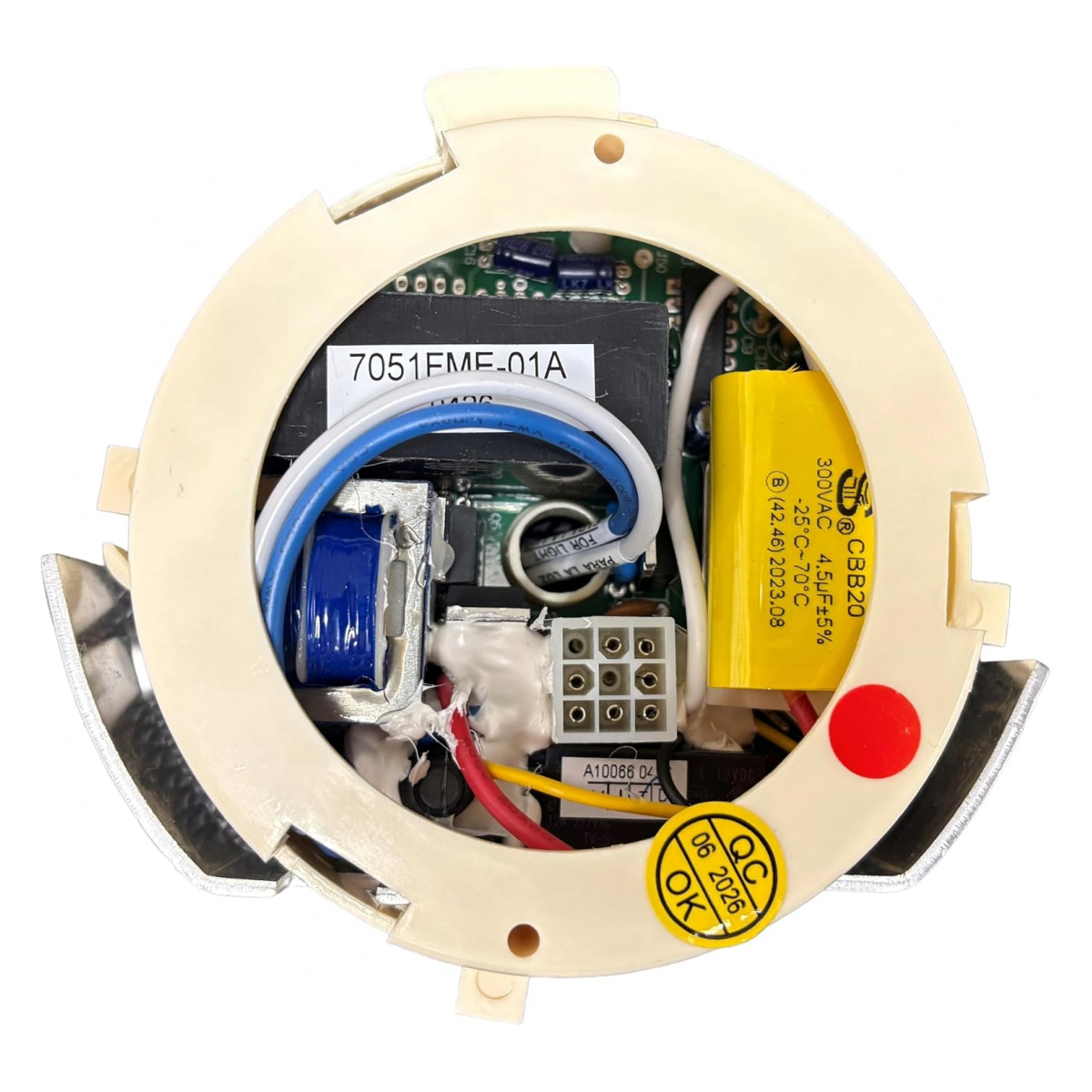

About the Hampton Bay CHQ8BT7051R Receiver

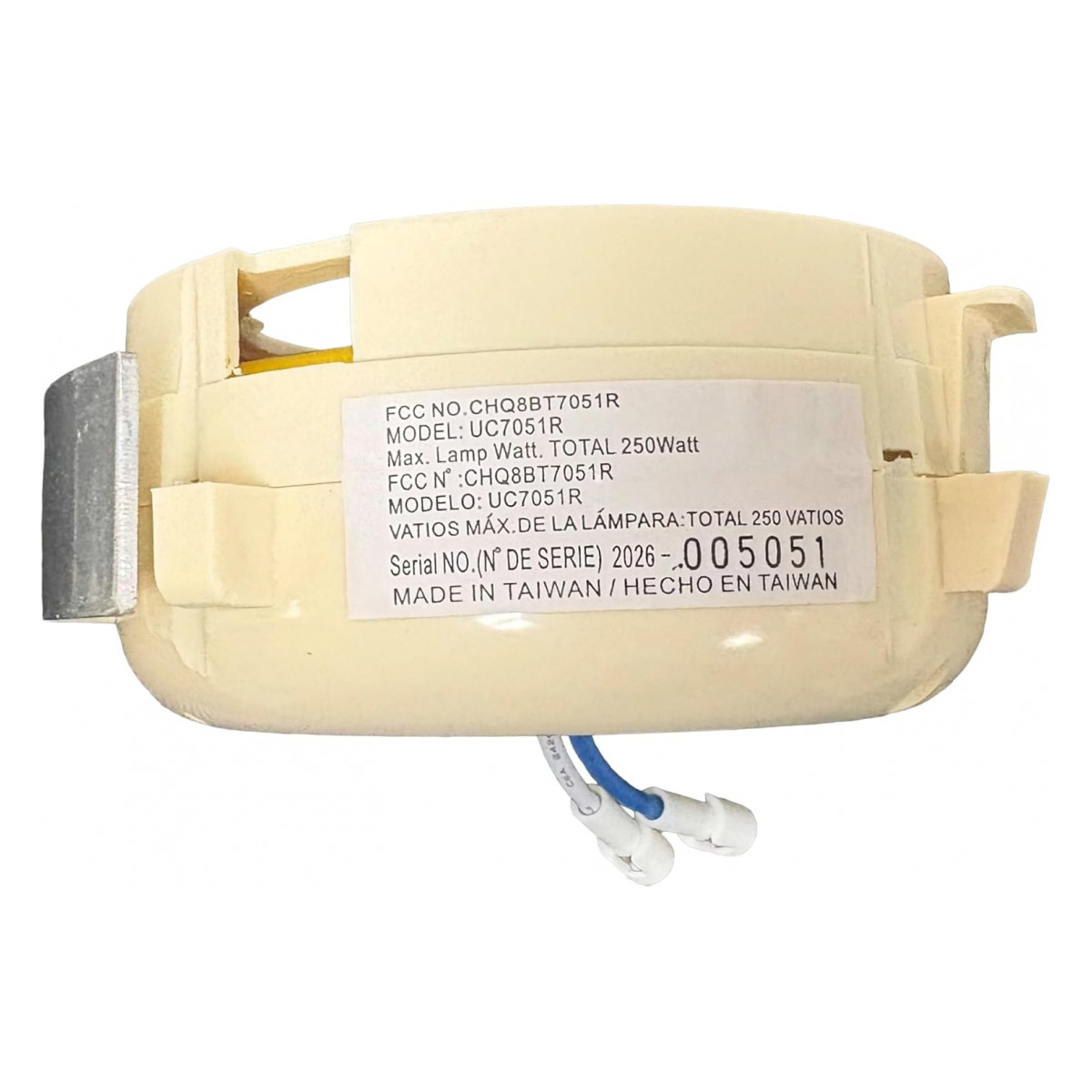

A failed CHQ8BT7051R can't be fixed with a new remote. This receiver brings back a direct-fit receiver that uses your fan's existing harness. CHQ8BT7051R is printed on the label of the receiver itself, which sits in the fan's canopy or switch housing. Your old receiver's plug should match this one's harness connector.

Check the label on your old receiver: if it reads CHQ8BT7051R, this is the replacement. It uses your existing remote; just match the DIP switches.

Dims the down light
DIP code switches to match your remote
No fan rewiring when the connector matches
Three fan speeds plus off

Where the receiver is

The receiver usually sits in the canopy at the ceiling or in the switch housing below the motor. Turn off power at the breaker before you open either one.

Matching your remote

Open your remote's battery compartment and note its DIP switch positions. Set the receiver's switches to exactly the same positions. Your existing remote then works with the new receiver.

Before you order

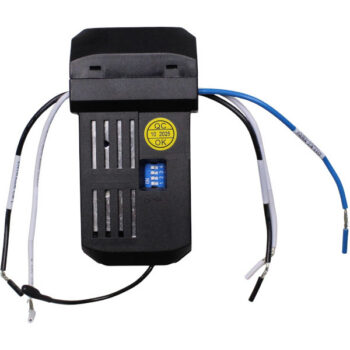

Not the same as UC7051G, UC7067RC, UC7067FMRX or FAN28R receivers.
Not for Minka-Aire fans.
Not for DC-motor fans.

Setup & Pairing

You'll need a ladder and someone to steady it.

Shut off the fan's circuit at the breaker.
Check the DIP switches inside your remote's battery compartment and note them.
Set the receiver's DIP switches to match, switch for switch.
Connect the receiver with the fan's existing harness or wiring and seat it in the canopy or switch housing.
Turn the breaker on and try every button.

Keep the old receiver until the new one works.

In the box: 1 CHQ8BT7051R ceiling fan receiver, ready to install.

Product Details

Part Number	CHQ8BT7051R
Fan Brand	Hampton Bay
Product Type	Ceiling Fan Receiver
Made By	Comfort Direct
Condition	New
Fan speeds	3 + off
Reverse	Yes (with a reverse-capable remote)
Light	Down light on/off and dimming
Pairing	DIP code switches set to match your remote
Wiring	Uses the fan's existing harness; compare the connector first
Power	120V fan supply, no battery
Warranty	1 year
Availability	In stock
Ships	Same business day if ordered by 4 PM
Returns	90 days on unused items

Not sure this is the right receiver?Our team will check it against your fan before you order.(816) 586-8457 · info@fanremotes.comMon–Fri, 8 AM – 5 PM CT

Why Buy From FanRemotes.com?

1-Year WarrantyEvery product is covered against defects
Same-Day ShippingIn-stock orders placed by 4 PM ship the same business day
90-Day Return PolicyBuy with confidence
Real Remote Experts(816) 586-8457 · Mon–Fri, 8 AM – 5 PM CT

Frequently Asked Questions

Does this include a remote?

No. It is the receiver only. Use your existing remote and match its DIP switches.

Will it work on a DC fan?

No. It's not for DC-motor fans.

Where is the receiver in my fan?

Usually in the canopy at the ceiling or in the switch housing below the motor. Turn off power before opening.

Which direction should the fan turn in winter?

Clockwise on a low speed, seen from below. In summer, run it counterclockwise for a cooling downdraft.

Where do I find my fan's model number?

Look for a sticker on top of the motor housing, or check the owner's manual or the carton. Store order history from Lowe's or Home Depot also lists it.

When will my order ship?

In-stock orders placed by 4 PM, Monday to Friday, ship the same business day.

What is your return policy?

You can return items within 90 days. Items must be unused and uninstalled, in their original packaging. No restocking fees. Please read our return policy before sending anything back. Questions? Call (816) 586-8457 or email info@fanremotes.com.

Is there a warranty?

Yes. Every product we sell comes with a 1-year warranty against defects. If it fails because of a defect, contact us and we’ll send a replacement.
