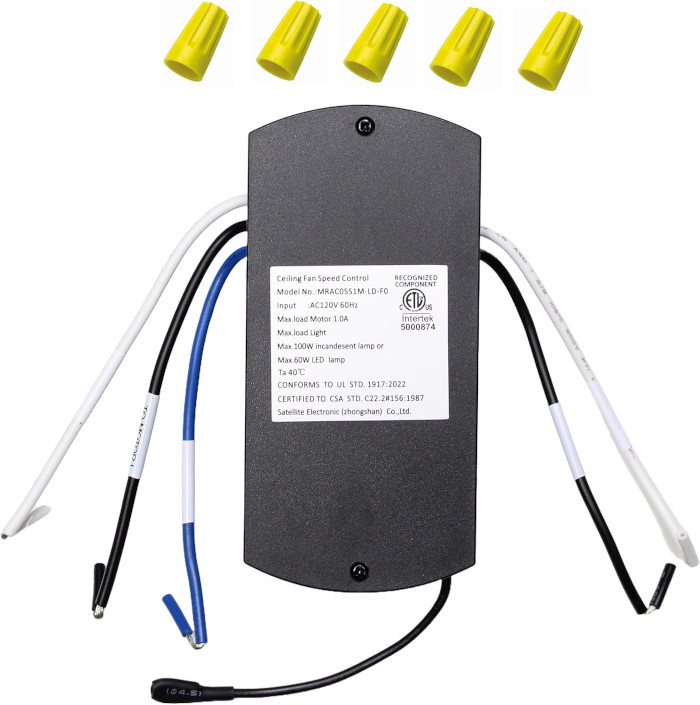

1145466 Ceiling Fan Receiver for Harbor Breeze

About the Harbor Breeze 1145466 Receiver

If your receipt or fan box reads Lowe's item 1145466, your Harbor Breeze fan uses a learning receiver like this one. When the receiver fails, the remote stops running the fan and light even with a fresh battery. One wire-in swap gets the remote working again for speeds and the light.

Check your Lowe's receipt or the fan box: if it shows item 1145466, this is the one you need. Most people finish the swap in under an hour.

• Light on/off and dimming
• Pairs with TR214-series learning remotes
• Backed by our 1-year warranty
• Runs at 304.25 MHz

Why receivers wear out

The receiver lives in a warm, tight space above the fan, right next to the motor and light. Years of heat cycles and the occasional power spike take a toll on its parts. That is why a fan with a healthy motor can suddenly stop responding to its remote.

About the frequency

The receiver works at 304.25 MHz. Matching frequency alone is not enough, though, because the remote also has to speak the same learning-code language. Stick with one of the listed remotes and you will not have to guess.

Before you order

• This receiver uses wire-nut leads. If your old one connects through a square plug, contact us first.

Setup & Pairing

You need a ladder, a screwdriver and a voltage tester.

1. Cut power at the breaker panel, not just the wall switch.
2. Lower the canopy and disconnect the old receiver, noting which wire went where.
3. Wire in the new receiver lead for lead, following your photo, and twist each wire nut snug.
4. Make sure other fans with learning receivers are switched off, so only this one learns the remote.
5. Bring the power back and press and hold the remote's 0 button within about 30 seconds; let go when the light blinks twice.
6. Try low, medium and high, then the light, before closing up the canopy.

In the box: Replacement receiver for Lowe's item 1145466.
