For Fanimation ceiling fansDirect Replacement

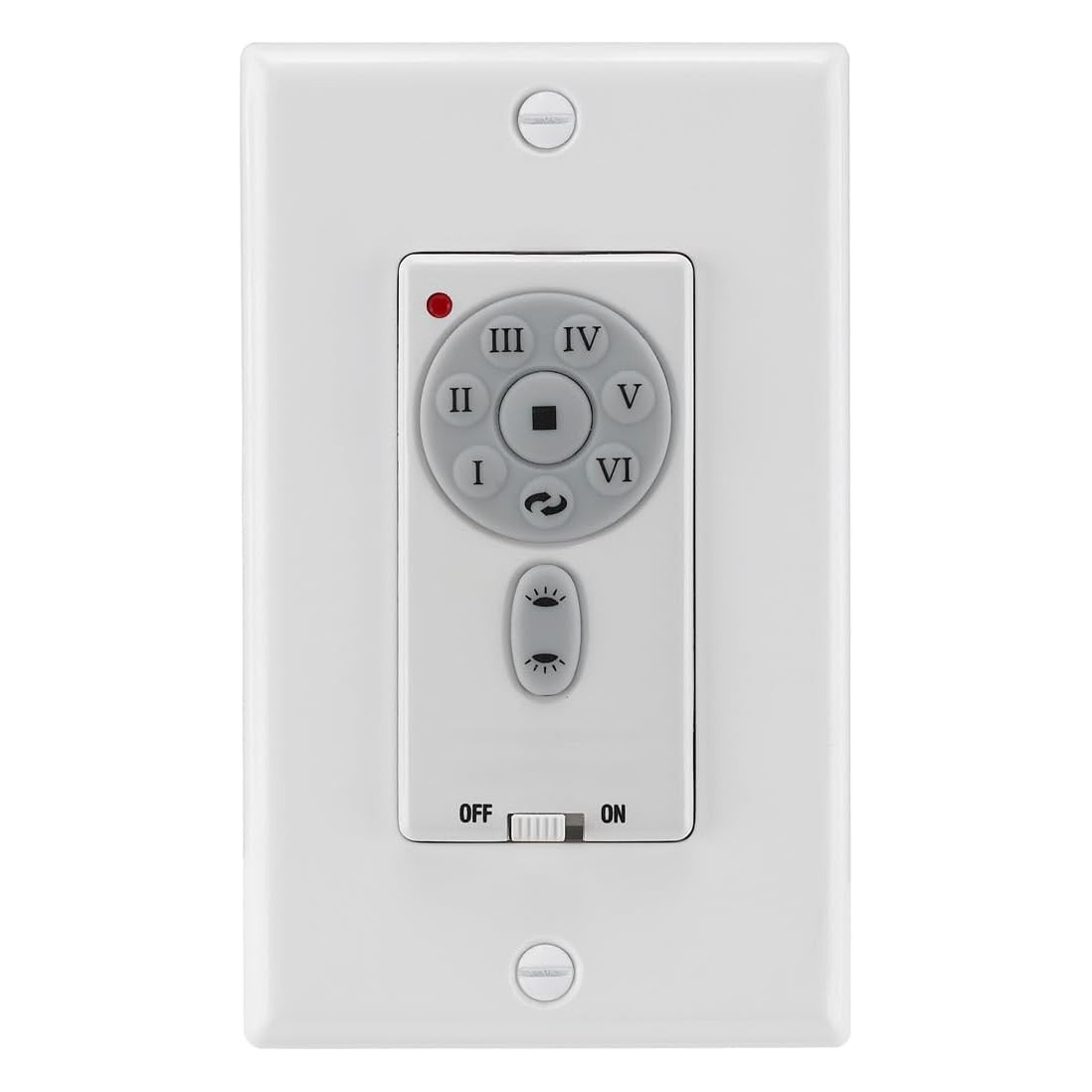

CHQ9053T Ceiling Fan Wall Control for Fanimation

Part # CHQ9053T
Ceiling Fan Wall Control

Replacement wall control for Fanimation ceiling fans that came with the CHQ9053T, with reverse, six speeds and two dimmable lights from one wall unit.

$49.95

Ships today from FanRemotes.com

if ordered in the next

1-Year WarrantyOn every product
Same-Day ShippingIn-stock orders by 4 PM
90-Day ReturnsSee return policy
Expert Support(816) 586-8457Mon–Fri, 8 AM – 5 PM CT

Category: Ceiling Fan Wall Control Brand: Comfort Direct, Fanimation

Will This Wall Control Fit?

This wall control is made to replace the CHQ9053T. Check the label on your old wall control — if it reads CHQ9053T, this is the one you need.

Need help finding your model number? Not sure? Call (816) 586-8457 or email info@fanremotes.com.

About the Fanimation CHQ9053T Wall Control

If your CHQ9053T has quit, this wall control takes over with independent up-light and down-light dimming plus six fan speeds. With the wall plate off, CHQ9053T is printed on the label on the side or back of the old wall control. The original has separate up-light and down-light buttons, which this version matches.

Check the label on your old wall control: if it reads CHQ9053T, this is the one you need. After wiring, a press of SET starts a short learning run, and then it's ready.

Six DC fan speeds plus off
Reverse button
Separate up light and down light, each with full-range dimming
Shuts down if motor power goes over 80W

Summer and winter direction

In summer, run the blades counterclockwise, seen from below, so the fan pushes air straight down for a cooling breeze. In winter, switch to clockwise on a low speed. That draws air up and moves the warm air near the ceiling down along the walls without a draft. A good habit is to flip direction when you change the thermostat from cooling to heating.

Two lights, set separately

The up light and the down light each have their own control and their own dimming. Wash the ceiling with soft light from above and keep the down light low, or the reverse, whatever suits the room.

Before you order

Not the same as Fanimation TW306, TW406 or TW407 controls. Match the number on your old control.
Needs a neutral wire in the wall box.

Setup & Pairing

You'll need a neutral wire in the box; check before you start.

Switch off the breaker for the fan.
Take off the faceplate and put in the 12V A23 battery.
Set the code switches on the control (and on the fan's receiver, if it has them) to the same code.
Wire it in, fasten it to the box and restore power.
Inside 60 seconds of power coming back, hold SET for 1 to 5 seconds.
The fan runs in both directions for about 5 minutes and then stops. Pairing is complete.
After a blade change, run this setup again.

Keep the instructions with your fan's manual for next time.

In the box: CHQ9053T replacement wall control, wall plate and mounting screws.

Product Details

Part Number	CHQ9053T
Fan Brand	Fanimation
Product Type	Ceiling Fan Wall Control
Made By	Comfort Direct
Condition	New
Fan speeds	6 + off
Reverse	Yes
Light	Independent up light and down light, each dimmable (on/off-only setting for non-dimmable bulbs)
Wiring	120V, 60 Hz in-wall: line, neutral and ground from the wall box; one black lead to the fan motor. Neutral wire required.
Battery	One 12V A23, fits under the faceplate
Pairing	Code switches + SET button
Mounting	Fits a standard single-gang wall box
Warranty	1 year
Availability	In stock
Ships	Same business day if ordered by 4 PM
Returns	90 days on unused items

Not sure this is the right wall control?Our team will check it against your fan before you order.(816) 586-8457 · info@fanremotes.comMon–Fri, 8 AM – 5 PM CT

Why Buy From FanRemotes.com?

1-Year WarrantyEvery product is covered against defects
Same-Day ShippingIn-stock orders placed by 4 PM ship the same business day
90-Day Return PolicyBuy with confidence
Real Remote Experts(816) 586-8457 · Mon–Fri, 8 AM – 5 PM CT

Frequently Asked Questions

Does it need a neutral wire?

Yes. The control is powered from line and neutral in the wall box.

Will it run an AC-motor fan?

No. It's for DC-motor fans only.

Why does my fan spin both ways for a few minutes after setup?

That is normal. The fan is learning the blades. It stops after about 5 minutes and is then ready to use.

Is there a warranty?

Yes. It comes with a 1-year warranty against defects.

Which direction should the fan turn in winter?

Clockwise on a low speed, seen from below. In summer, run it counterclockwise for a cooling downdraft.

When will my order ship?

In-stock orders placed by 4 PM, Monday to Friday, ship the same business day.

What is your return policy?

You can return items within 90 days. Items must be unused and uninstalled, in their original packaging. No restocking fees. Please read our return policy before sending anything back. Questions? Call (816) 586-8457 or email info@fanremotes.com.

Is there a warranty?

Yes. Every product we sell comes with a 1-year warranty against defects. If it fails because of a defect, contact us and we’ll send a replacement.
