SW19151 Hampton Bay Ceiling Fan LED Light Array Bulb Replacement

About the Hampton Bay SW19151 Light Kit

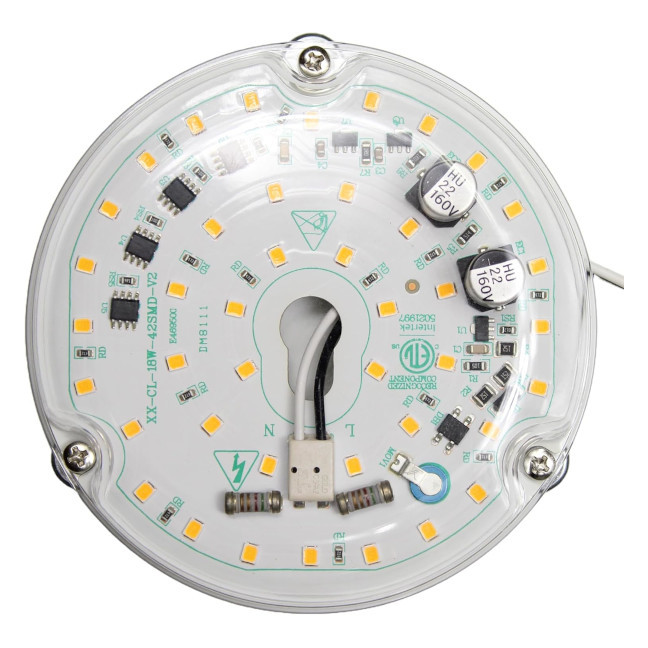

The SW19151 is the Hampton Bay Caprice. It lights the room with a built-in round LED array instead of screw-in bulbs. When that array fails, this replacement restores warm 3000K white light without changing anything else on the fan.

Read the label on the motor housing first. If it shows SW19151, this is your array. Everything needed to hang it, the wiring connector and the mounting hardware, is included. Your remote does not need to learn anything new.

• Included wiring connector
• 3000K warm white light
• Round LED light array

Where the model label is

Hampton Bay puts the model number on a sticker on the motor housing, usually on top. From a ladder, shine a flashlight across the motor and read it there. The same number appears on the box, in the manual and on your store receipt if you kept them.

Is it the light or the fan?

If the blades still turn and answer the remote but the light stays dark or flickers, the LED module is the usual suspect. If nothing responds at all, the remote or the receiver in the canopy is more likely at fault, and a new light module will not fix that. Rule those out first.

Before you order

• Check the model number on your fan's label before you order. This array is made for SW19151.
• Harbor Breeze Mazon fans use a different light module. Order the one made for your fan.

Setup & Pairing

1. Cut power at the breaker; the wall switch alone is not enough.
2. Take off the light cover, then remove the screws holding the old array.
3. Separate the old wires, then connect the replacement with the included connector.
4. Mount the new array with the included hardware and replace the light cover.
5. Turn the breaker back on and test the light.

Tip: keep the screws in a cup so none roll off the ladder.

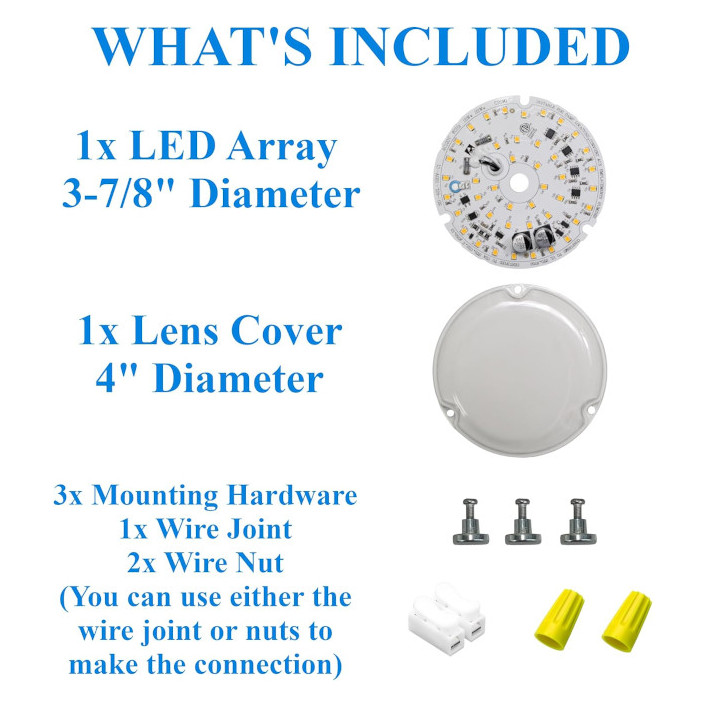

In the box: SW19151 replacement round LED array with its wiring connector and mounting hardware.
