1145467 Ceiling Fan Receiver for Harbor Breeze

About the Harbor Breeze 1145467 Receiver

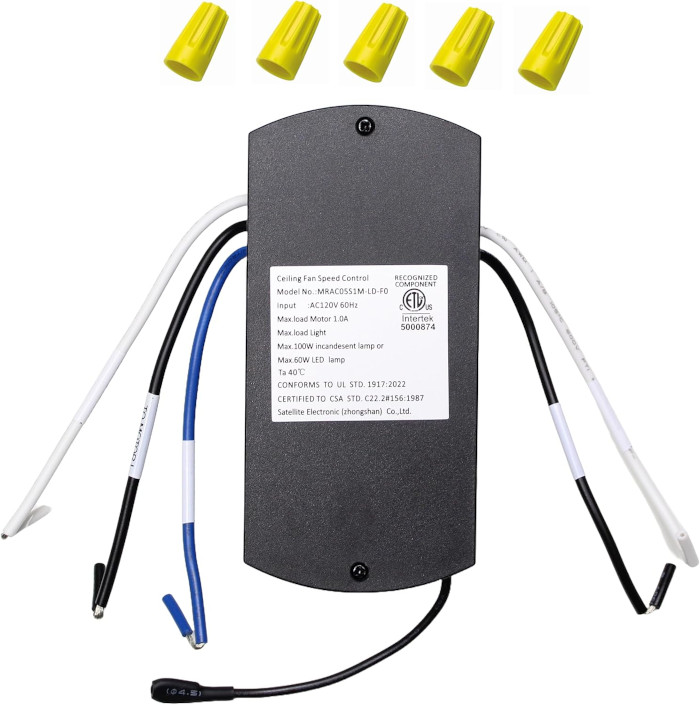

Lowe's item 1145467 is a remote-controlled Harbor Breeze ceiling fan. The receiver is the small box in the canopy that turns remote signals into fan and light commands, and it is the part that usually quits first. It restores the three speeds and dimmable light without replacing the fan.

Your receipt, box or order history should list item 1145467; if it does, this receiver is for your fan. No codes or switches, just a power cycle and one button.

• Simple wire-nut hookup
• Pairs in about 30 seconds by holding one button
• Comfort Direct replacement receiver
• Restores remote control without replacing the fan

The light wire

On many ceiling fans the light kit is fed by its own lead, often blue, while black powers the motor and white is the neutral. Your receiver's labels and your earlier photo are the real guide, so match each connection to how the old receiver was wired.

Dead remote or failed receiver?

Start with the cheap test. Put a fresh battery in the remote and press a button while watching its indicator light, if it has one. If the remote seems alive but the fan still ignores it, and turning the breaker off and on does nothing, the receiver in the canopy is the part that has failed.

Setup & Pairing

1. Turn off power to the fan at the breaker.
2. Drop the canopy, unscrew the wire nuts on the old receiver and note each connection.
3. Connect the new receiver with wire nuts the same way the old one was connected.
4. Power down any other nearby fans first; otherwise they could pair to the same remote.
5. Flip the breaker on and, inside about 30 seconds, press and hold 0 on the remote. Two blinks from the light mean it paired.
6. Try low, medium and high, then the light, before closing up the canopy.

Tip: a helper at the breaker makes the 30-second pairing window easy.

In the box: Replacement receiver for Lowe's item 1145467.
