For Fanimation ceiling fansDirect Replacement

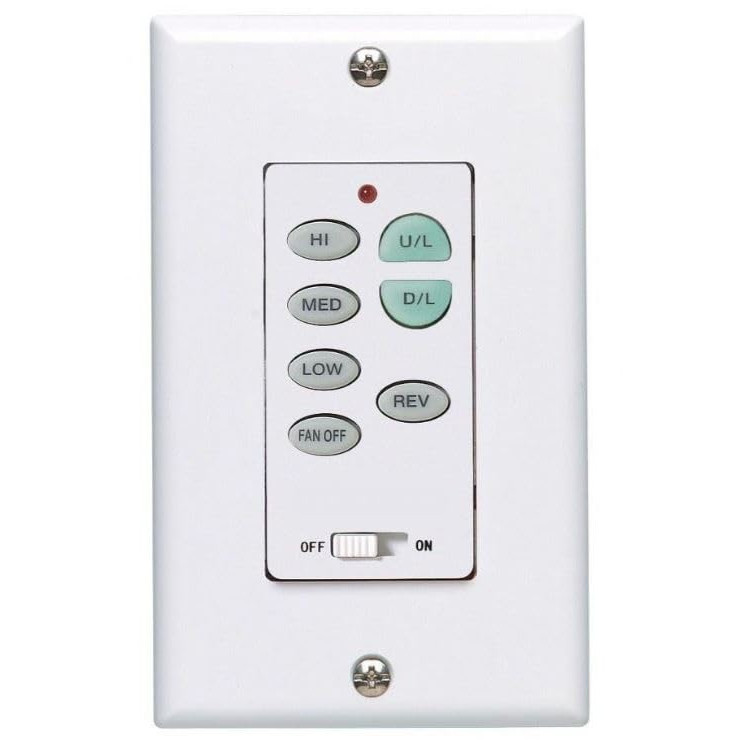

C23 Ceiling Fan Wall Control For Fanimation Ceiling Fans

Part # C23
Ceiling Fan Wall Control

Replacement C23 wall control for Fanimation ceiling fans with separate up and down lights, with three speeds, off, reverse and dimming.

$43.95

Ships today from FanRemotes.com

if ordered in the next

In stock

1-Year WarrantyOn every product
Same-Day ShippingIn-stock orders by 4 PM
90-Day ReturnsSee return policy
Expert Support(816) 586-8457Mon–Fri, 8 AM – 5 PM CT

Category: Ceiling Fan Wall Control Brand: Comfort Direct, Fanimation

Will This Wall Control Fit?

This wall control is made for fans that came with the C23. Check the label on your old wall control (often inside the battery cover) — if it reads C23, this is the one you need.

Need help finding your model number? Not sure? Call (816) 586-8457 or email info@fanremotes.com.

About the Fanimation C23 Wall Control

Fanimation no longer makes the C23 wall control, so our C23 replacement gets your Fanimation fan running from the wall again. You get high, medium, low and off, a reverse button, and dimming for both the up-light and the down-light.

It is made for Fanimation fans that came with the C23 wall control. Check your old control: if it reads C23 and has an up-light button and a down-light button, this is the one you need. It wires into your wall box on 120 V power and pairs by matching 4 DIP switches, with no programming.

Separate up-light and down-light buttons, hold to dim
High, medium, low and off at the wall
Reverse button on fans that originally had reverse
Installs in your existing wall switch box
Simple 4 DIP switch pairing

Before you order

If your Fanimation control has only one light button, look at our C21 wall control instead.
To run the up-light and down-light separately, your fan needs an up/down-light receiver such as the UC7067GMRX. With a single-light receiver like the UC7067FMRX, only one light will work.
This is the wall control only, with no receiver. Older Fanimation systems run at 303 MHz, so contact our team if your old control's label doesn't read C23.

Setup & Pairing

Turn off power to the fan and the wall switch at the breaker.
Remove the old C23 wall control from the box, noting how it was wired.
Find the 4 DIP (code) switches on the receiver in the fan canopy and on the new wall control.
Use a pen tip or small screwdriver to set the wall control's 4 switches to exactly match the receiver. There are 16 possible codes, and no programming is needed.
If both are still on the factory setting, we suggest picking a new pattern and setting it on both, so a neighbor's fan can't respond to your control.
Wire the control into the box following the included wiring diagram, then mount it to the box.
Restore power at the breaker and test each button, including up-light and down-light.

In the box: C23 replacement wall control, wiring diagram and instructions.

Product Details

Part Number	C23
Fan Brand	Fanimation
Product Type	Ceiling Fan Wall Control
Made By	Comfort Direct
Condition	New
Frequency	303.875 MHz
Pairing	4 DIP switches matched to your fan's receiver, no programming
Installation	Wires into your wall switch box, 120 V, 60 Hz
Fan speeds	High, medium, low and off
Light	Separate up-light and down-light buttons: tap for on/off, hold to dim
Reverse	Yes, on fans that originally had reverse
Warranty	1 year
Availability	In stock
Ships	Same business day if ordered by 4 PM
Returns	90 days on unused items

Not sure this is the right wall control?Our team will check it against your fan before you order.(816) 586-8457 · info@fanremotes.comMon–Fri, 8 AM – 5 PM CT

Why Buy From FanRemotes.com?

1-Year WarrantyEvery product is covered against defects
Same-Day ShippingIn-stock orders placed by 4 PM ship the same business day
90-Day Return PolicyBuy with confidence
Real Remote Experts(816) 586-8457 · Mon–Fri, 8 AM – 5 PM CT

Frequently Asked Questions

Will this replace my Fanimation C23?

Yes. Fanimation has discontinued the C23, and this is our replacement for it. Check that your old control has an up-light button and a down-light button.

Does it come with a receiver?

No, it is the wall control only. Your fan needs its existing compatible receiver in the canopy.

Can I control the up-light and down-light separately?

Yes, if your fan has an up/down-light receiver such as the UC7067GMRX. Each light has its own button, and you hold the button to dim.

How do I pair the C23 with my fan?

Turn off power at the breaker, then match the 4 DIP switches on the wall control to the switches on the receiver in your fan canopy. No programming is needed.

What frequency is it?

303.875 MHz. Some older Fanimation systems use 303 MHz, so contact our team at (816) 586-8457 or info@fanremotes.com if you're unsure.

What if my old control has a different number?

Check the label on your old control. This wall control is made for C23; for other numbers search our store or contact us at (816) 586-8457 or info@fanremotes.com.

When will my order ship?

In-stock orders placed by 4 PM, Monday to Friday, ship the same business day.

What is your return policy?

You can return items within 90 days. Items must be unused and uninstalled, in their original packaging. No restocking fees. Please read our return policy before sending anything back. Questions? Call (816) 586-8457 or email info@fanremotes.com.

Is there a warranty?

Yes. Every product we sell comes with a 1-year warranty against defects. If it fails because of a defect, contact us and we’ll send a replacement.
