BRD60OSB6LR Ceiling Fan Receiver for Harbor Breeze

About the Harbor Breeze BRD60OSB6LR Receiver

Model BRD60OSB6LR is the 60-in Bradbury fan from Harbor Breeze with a bronze finish and built-in LED light. It was sold at Lowe's as item 4057327. The motor in a fan like this usually outlasts the receiver, so a dead remote rarely means a dead fan. This receiver wires in at the canopy and puts speed and light control back where they belong.

Check the model label on your fan: if it reads BRD60OSB6LR, this is the one you need. Setup is simple: restore power and hold the remote's 0 button.

• Backed by our 1-year warranty
• Pairs with TR214-series learning remotes
• Comfort Direct replacement receiver
• 1-year warranty, in-stock orders ship same day

Why receivers wear out

The receiver lives in a warm, tight space above the fan, right next to the motor and light. Years of heat cycles and the occasional power spike take a toll on its parts. That is why a fan with a healthy motor can suddenly stop responding to its remote.

Shut the power off the right way

Flip the breaker for the fan's circuit rather than relying on the wall switch alone, since some switches only break one wire. A simple non-contact voltage tester, held near the fan wires, confirms the power is really off before you touch anything.

Before you order

• Check that your old receiver has wire leads, not a square plug, before you order.
• Make sure your remote is one of the learning-code models listed on this page.

Setup & Pairing

Plan on about an hour, most of it spent at the canopy.

1. Switch off the breaker that feeds the BRD60OSB6LR, then confirm the power is off.
2. Remove the canopy cover and unhook the old receiver, keeping track of every wire.
3. Hook up the replacement receiver with wire nuts exactly as the old one was wired, then tuck it into the canopy.
4. Turn off power to any other nearby fans with learning receivers so they do not pair at the same time.
5. Bring the power back and press and hold the remote's 0 button within about 30 seconds; let go when the light blinks twice.
6. Check every speed, then turn the light on, off and dim it.

Tip: if the light does not blink, turn the power off for a few seconds and try again.

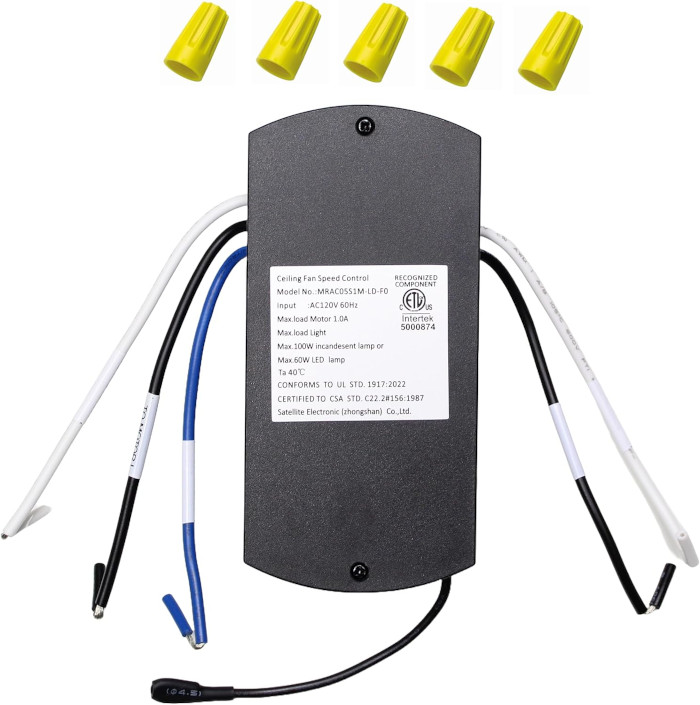

In the box: Replacement receiver for the BRD60OSB6LR.
