105000-0784WW Harbor Breeze Ceiling Fan LED Light Module Replacement

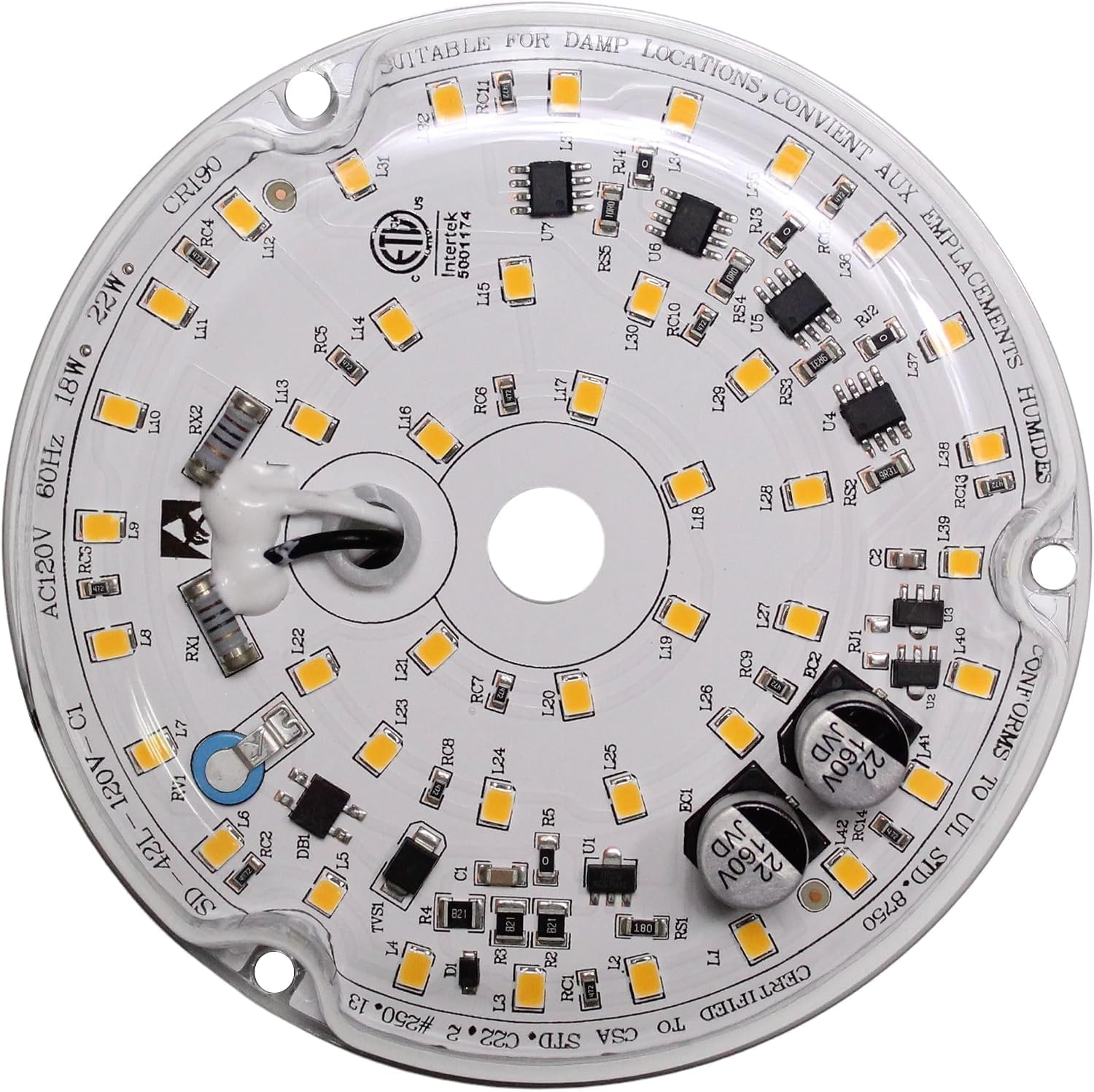

About the Harbor Breeze 105000-0784WW Light Kit

105000-0784WW is the part number for the 18W LED light module listed in the parts section of older Mazon 44-in manuals. If your manual or old module shows that number and the light has failed, this replacement restores it with 3000K warm white light.

Match the number on your old module or in the manual to 105000-0784WW before you order. The kit gives up to 1900 lumens and is dimmable. You cut off the old pin connector and use the included one, and there's nothing to pair.

• Wiring connector included to replace the old pin connector
• Mounts with your original screws
• Backed by our 1-year warranty
• Up to 1900 lumens, dimmable

How bright it is

At up to 1900 lumens, this 18W module puts out plenty of light for a bedroom, office or den. Because it's dimmable, you can bring it down for evenings and back up for cleaning or reading. It's a good match for rooms where the fan light is the main light source.

Testing after the swap

Restore power at the breaker, switch the light on with your usual control, and try dimming it. If it stays dark, turn the breaker off and recheck the connections before anything else. A joint that isn't fully seated is the usual cause of a dark or flickering light after a swap.

Before you order

• It replaces the light only; it isn't a remote or a receiver.
• Not for the newer MZ44 flush mounts, which use another module. Confirm your label first.

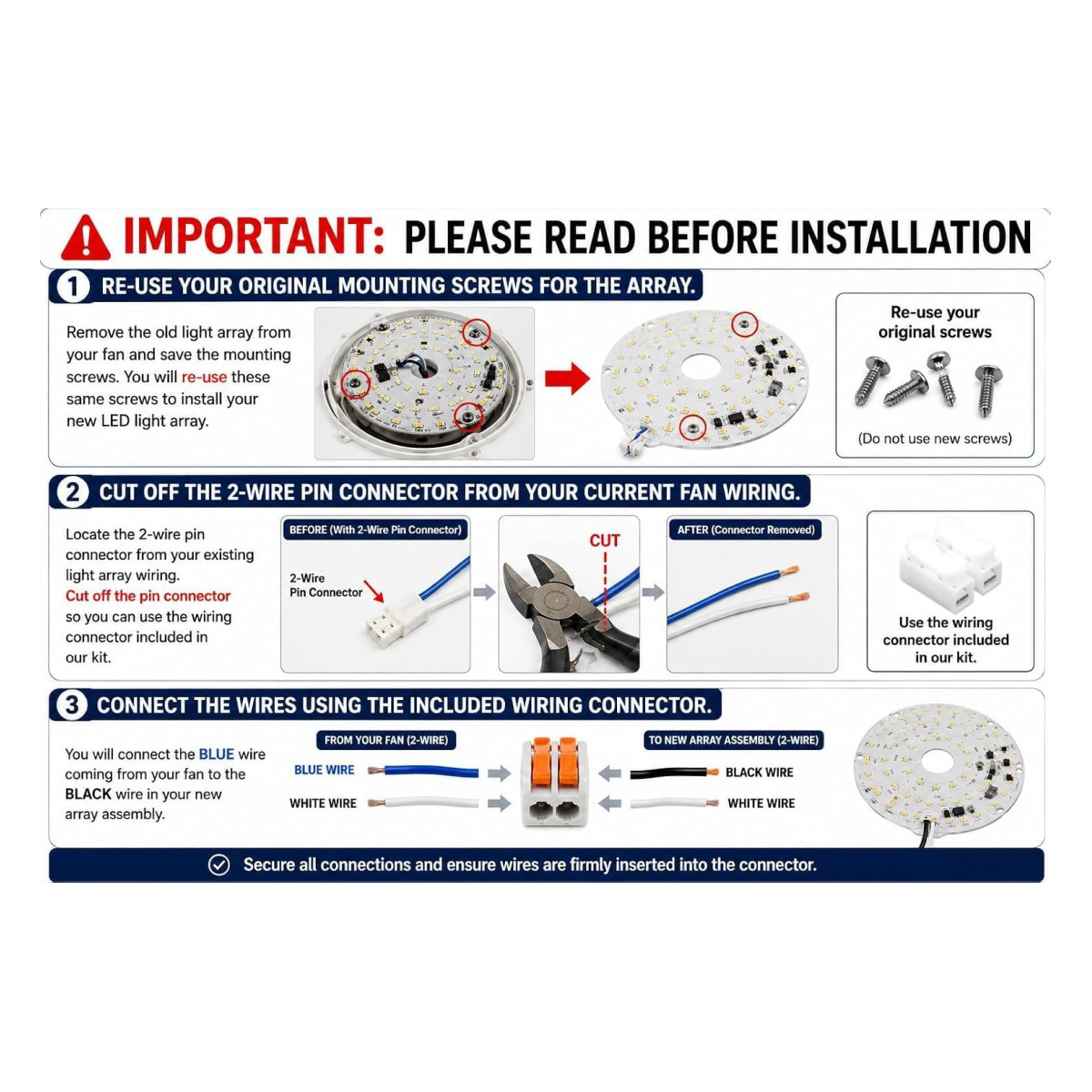

Setup & Pairing

Allow a few minutes with the breaker off.

1. Switch off the fan's circuit breaker.
2. Remove the cover and old module; keep every mounting screw.
3. Snip the wires just behind the old pin connector.
4. Attach the new module with the included wiring connector.
5. Fasten the module with the saved screws, then put on the new retrofit lens.
6. Restore power, then check that the light turns on and dims.

In the box: the 105000-0784WW replacement LED module (18W), a wiring connector and a retrofit lens.
